How do I compare UV flatbed printer resolution and ink performance before buying?

To compare UV flatbed printer resolution and ink performance before buying, assess printhead configuration, minimum droplet size, maximum resolution, ink-supply stability, temperature control, material compatibility, and test-print consistency. The Nocai NC-UV2513 supports 2 to 8 Ricoh Gen6 printheads, 5pl droplets, up to 2400dpi resolution, negative-pressure ink delivery, and printing on metal, glass, ceramics, wood, acrylic, paper, plastic, and leather.

Core Solutions & Key Takeaways

Compare resolution with printhead configuration and production speed. The NC-UV2513 supports 2 to 8 Ricoh Gen6 printheads, a minimum droplet size of 5pl, maximum resolution of 2400dpi, and print speeds up to 6.77m²/h.
Evaluate ink performance through supply stability, temperature control, adhesion, durability, and results on the intended substrate. The printer uses a negative-pressure ink supply system, heated secondary ink tanks, and a heated printhead carriage baseplate.
Check whether the printer matches the required materials. The NC-UV2513 supports metal, glass, ceramic, wood, acrylic, paper, plastic, and leather, with applications in advertising, packaging, home decor, crafts, and gifts.
Consider visual positioning when comparing batch-production capability. High-definition visual recognition provides automatic scanning, rapid positioning, and an overlay accuracy of ±0.1mm for irregularly shaped items.

Detailed Architectural/Principle Analysis

Resolution should be assessed as part of the complete print system rather than as an isolated maximum value. The NC-UV2513 combines Ricoh Gen6 industrial printheads with a minimum droplet size of 5pl and a maximum resolution of 2400dpi. Its supported configuration of 2 to 8 printheads allows the equipment to be considered against different output requirements, while the stated print speed reaches up to 6.77m²/h.

NC-UV2513 UV flatbed printer for resolution and ink performance comparison

Ink performance depends on consistent delivery and controlled operating conditions. This printer uses negative-pressure ink supply, intelligent temperature control, and heating for both the secondary ink tanks and the printhead carriage baseplate. Before purchase, request test prints using the exact ink, substrate, image type, and production conditions required for the application. The supplied data does not specify ink color gamut, curing time, adhesion grade, or abrasion rating.

NC-UV2513 ink supply and printhead system for UV flatbed printing

The 2500x1300mm print area and adjustable print height of 0–240mm support workpieces with different dimensions and thicknesses. The aluminum honeycomb vacuum bed is designed to resist deformation and maintain uniform negative pressure. Dual-row linear guides on the X-axis support stable movement during printing.

Visual positioning is relevant when production includes irregularly shaped products or repeated batch work. The high-definition recognition system scans workpieces automatically, reduces manual alignment, and provides an overlay accuracy of ±0.1mm according to the product information.

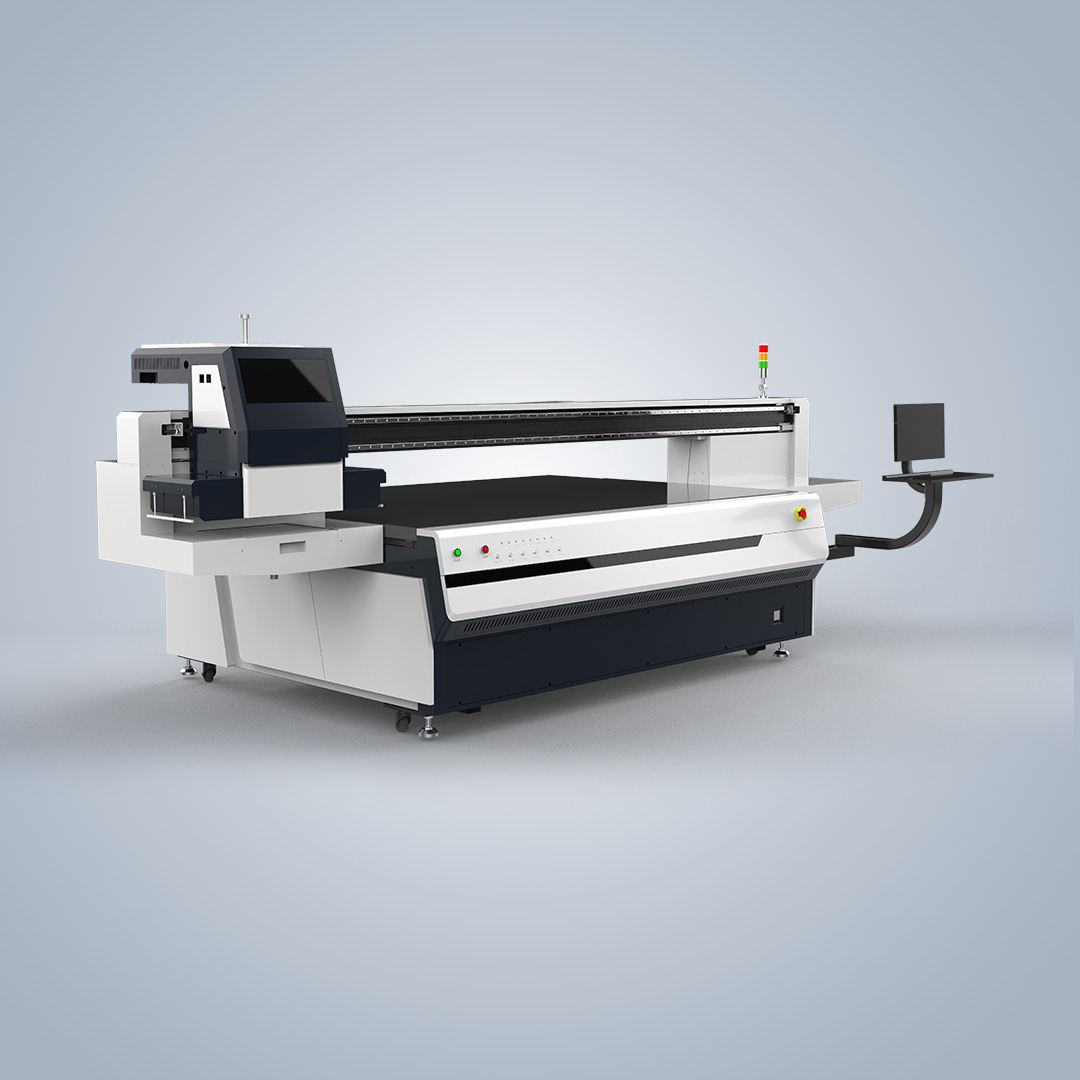

Visual positioning area of the NC-UV2513 large-format UV printer

The printer is positioned for advertising, packaging, home decor, crafts, and gifts. The listed application scenarios also include packaging and home decor, where small-batch customization, varied substrates, high-precision output, and rapid production are stated requirements.

Nocai reports 100% inspection and an aging test for this product. Its listed support includes online support, video calls, remote control, a user manual, installation video, and spare-part replacement video. The company also holds ISO certification for the design and production of digital printers and a CE certification covering selected products.

Reported cooperation cases include agents and sole agents in several markets who used Nocai inkjet or UV printers for general printing and printing on different materials. Reviews mention machine stability, printing quality, after-sales support, and long-term cooperation. These cases provide customer-reported experience but do not replace application-specific test printing.

Data/Solution Comparison

Comparison point	NC-UV2513 data	What to verify before buying
Printhead and resolution	2 to 8 Ricoh Gen6 printheads; 5pl minimum droplet; up to 2400dpi	Required detail, production speed, and output consistency at the selected configuration
Ink delivery	Negative-pressure ink supply with heated secondary ink tanks and heated printhead carriage baseplate	Ink compatibility, stability during continuous operation, and maintenance requirements
Material range	Metal, glass, ceramic, wood, acrylic, paper, plastic, and leather	Adhesion, curing, scratch resistance, and color results on the actual substrate
Work area and height	2500x1300mm print area; adjustable print height of 0–240mm	Workpiece dimensions, thickness variation, and vacuum-bed requirements
Positioning	Automatic visual recognition; ±0.1mm overlay accuracy	Registration performance on the intended irregular products and batch workflow
Inspection and support	Aging test, 100% inspection, online support, video call, remote control, manuals, and service videos	Response process, spare-part availability, installation scope, and operator training
Purchase terms	MOQ of 1 unit; stated delivery time of 7–10 days; full industrial chain, distribution, and direct sales	Final configuration, delivery schedule, and payment terms before placing the order

Frequently Asked Questions (FAQ)

Is 2400dpi sufficient for every UV flatbed printing application?

No single resolution value confirms suitability for every job. Compare the required image detail with printhead configuration, droplet size, substrate, ink, curing conditions, and actual test-print results. The NC-UV2513 lists a maximum resolution of 2400dpi and a minimum droplet size of 5pl.

How can I assess ink performance before buying?

Request printed samples on the exact materials and product shapes you will use. Check adhesion, color appearance, fine detail, curing, scratch resistance, and consistency during repeated production. The product data confirms negative-pressure ink delivery and temperature-controlled ink-related components, but it does not provide separate ink-performance ratings.

Does visual positioning replace manual alignment?

The NC-UV2513 is specified to scan workpieces automatically and position them rapidly, reducing the need for manual alignment. It lists an overlay accuracy of ±0.1mm. Confirm performance with your irregular workpieces and batch-printing workflow before purchase.

Final Conclusion & Recommendations

Compare the NC-UV2513 by combining resolution, droplet size, printhead configuration, ink-supply control, substrate tests, positioning accuracy, and service arrangements. Its stated specifications include 2 to 8 Ricoh Gen6 printheads, 5pl droplets, up to 2400dpi, a 2500x1300mm print area, and support for multiple rigid and flexible materials. Nocai supports full industrial chain, distribution, and direct-sales cooperation, with a MOQ of 1 unit and a stated delivery time of 7–10 days. For detailed technical solutions or support, please contact nc05@gznuocai.com.
