Can a cylinder printing solution keep registration accurate on tapered containers?

Yes. A cylinder printing solution can keep registration accurate on tapered containers when it combines laser-based automatic product profiling, adjustable tilt control, and multi-diameter cylindrical jigs. The NC-CylinderElf-IV-A supports product height variations from 2 to 13 mm and uses helical printing to apply white, color, and varnish inks across a full 360-degree rotation.

Core Solutions & Key Takeaways

• Laser-based automatic product profiling identifies irregular product shapes and supports precise positioning during printing.
• Adjustable tilt control adapts the printing angle to the container shape, reducing the drop distance on inclined surfaces.
• Multi-diameter cylindrical jigs with scale markings support repeatable setup for different container sizes.
• The solution is designed for drinkware applications, including insulated cups, sports bottles, thermal flasks, and other customized cylindrical products.

Detailed Architectural/Principle Analysis

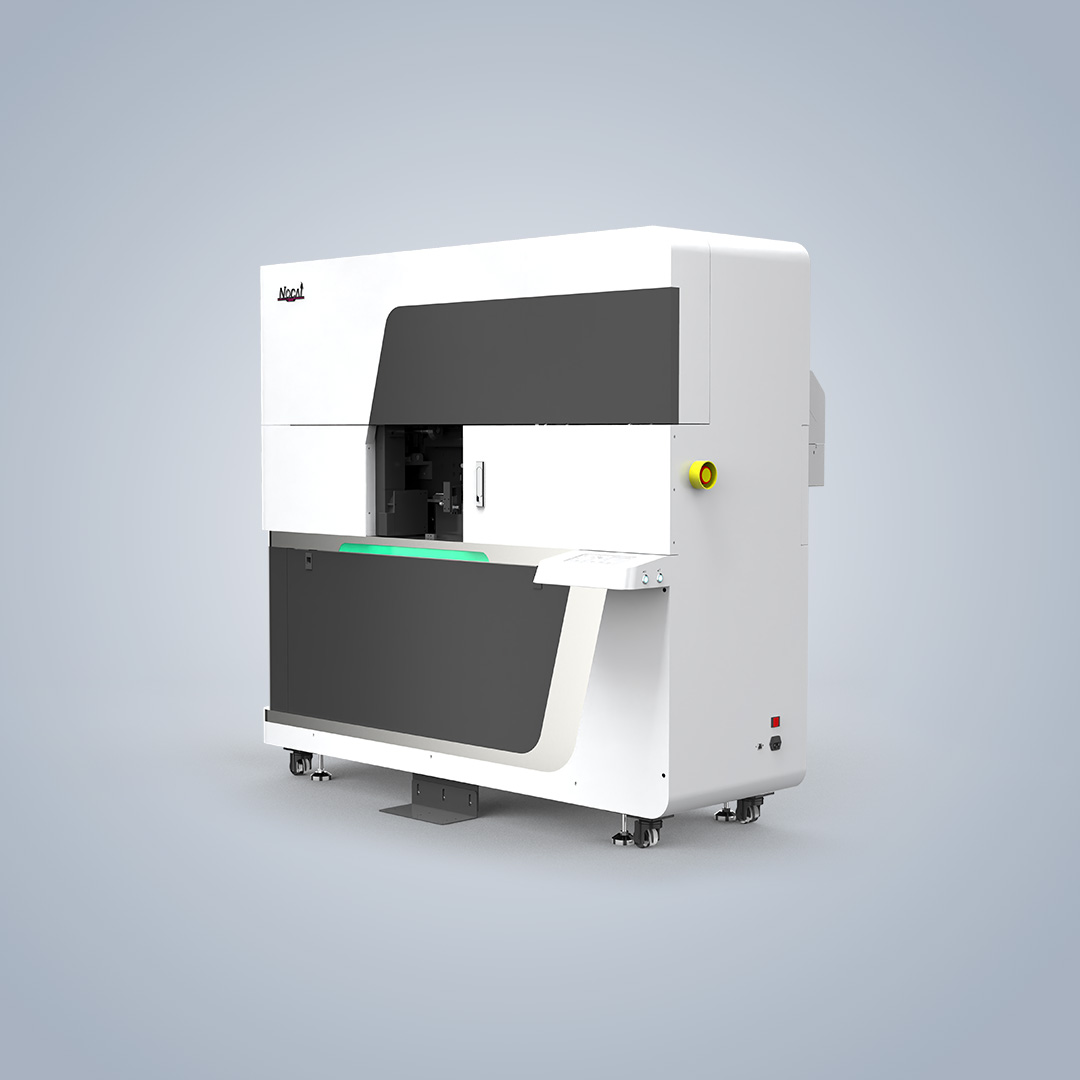

The NC-CylinderElf-IV-A uses four Ricoh Gen6 printheads and supports an 8-color, white, and varnish configuration. This setup provides color range and smooth gradients while allowing the printer to apply multiple ink layers during cylindrical production.

Registration on tapered or irregular containers depends on the relationship between product geometry and printhead positioning. The printer supports height variations from 2 to 13 mm and uses laser-based automatic product profiling to locate the printable surface. Adjustable tilt control then changes the printing angle according to the product shape, helping maintain a consistent distance between the printhead and inclined surfaces.

During production, helical printing technology applies white, color, and varnish inks while the product completes a 360-degree rotation. The stated print speed is as fast as 30 seconds per unit, making the configuration suitable for mass production when the container, jig, artwork, and print settings have been correctly prepared.

Repeatability is supported by multi-diameter cylindrical jigs and an adjustable jig with scale markings. These features help operators configure different product diameters and return to defined setup positions. Printhead protection includes a lifting ink station for capping and an infrared anti-collision sensor that stops carriage movement when contact is detected.

Ink delivery stability is addressed through a negative-pressure ink supply system. Secondary ink cartridges and the baseplate include intelligent temperature control and heating functions. The available quality process includes an aging test and 100% inspection. Nocai also documents TUV certification for the NC-UV0609PROII and CE certification for several listed products, although those certificates do not specifically establish performance for every tapered container.

Reported cooperation cases include agent and sole-agent customers in markets such as Indonesia, India, Poland, Turkey, and Malaysia. Their reviews refer to machine stability, printing quality, after-sales support, and printing on different materials. These cases indicate field experience with distributed printing operations, while the actual registration result for a tapered container still depends on product geometry, jig selection, artwork setup, and operating conditions.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

Can the printer handle tapered containers?

It is designed to accommodate irregularly shaped products through laser profiling, adjustable tilt control, and multi-diameter cylindrical jigs. The container must still be matched with an appropriate jig and setup.

How does the system improve registration accuracy?

Laser profiling supports precise product positioning, while tilt control adapts the print angle and reduces the distance between the printhead and inclined surfaces. These functions address the geometric changes found on tapered containers.

Can it print around the entire container?

Yes. The printer uses helical printing technology to jet white, color, and varnish inks during a full 360-degree rotation. The stated speed is as fast as 30 seconds per unit.

Final Conclusion & Recommendations

The NC-CylinderElf-IV-A can support accurate registration on tapered containers through laser-based profiling, adjustable tilt control, and configurable cylindrical jigs. Before production, confirm the container dimensions, taper, surface condition, jig selection, artwork, and ink configuration through a sample test. Nocai supports full industrial chain, distribution, and direct-sales cooperation, with a minimum order quantity of 1 unit, 5-7 day delivery, aging testing, and 100% inspection. For detailed technical solutions or support, please reach out to us via nc05@gznuocai.com.
