Can a cylinder printing solution be adapted for multiple diameters without delays?

Yes. A cylinder printing solution can be adapted for multiple diameters without delays when it uses multi-diameter cylindrical jigs with scale markings and adjustable setup. The NC-CylinderElf-IV-A also supports laser-based automatic product profiling, adjustable tilt control, and helical 360-degree printing, allowing different insulated cup sizes and inclined surfaces to be prepared efficiently for production.

Core Solutions & Key Takeaways

Multi-diameter cylindrical jigs with scale markings support different product diameters and simplify setup.
Laser-based automatic product profiling positions irregularly shaped products with a supported height variance of 2–13 mm.
Adjustable tilt control modifies the printing angle to reduce drop distance on inclined surfaces.
Helical printing applies white, color, and varnish inks during a full 360-degree rotation, with printing speeds as fast as 30 seconds per unit.

Detailed Architectural/Principle Analysis

The NC-CylinderElf-IV-A is a high-speed digital UV inkjet printer for insulated cups. Its four Ricoh Gen6 printheads support an 8-color, white, and varnish configuration, providing rich colors and smooth gradients for cylindrical products.

NC-CylinderElf-IV-A cylinder printing solution for insulated cups

Diameter flexibility comes from the multi-diameter cylindrical jigs. Scale markings on the adjustable jig help operators set the product position consistently, reducing preparation work when changing between cup sizes.

Multi-diameter cylindrical jig for the NC-CylinderElf-IV-A printing solution

Laser-based automatic product profiling measures the product profile for precise positioning. The printer supports a height variance, or drop, of 2–13 mm, which allows it to accommodate irregularly shaped products. Adjustable tilt control changes the printing angle according to the product shape and helps reduce the distance between the printhead and the printing surface.

During helical printing, white, color, and varnish inks are jetted across a full 360-degree rotation. This process is designed for continuous cylindrical decoration and supports printing speeds as fast as 30 seconds per unit for mass production.

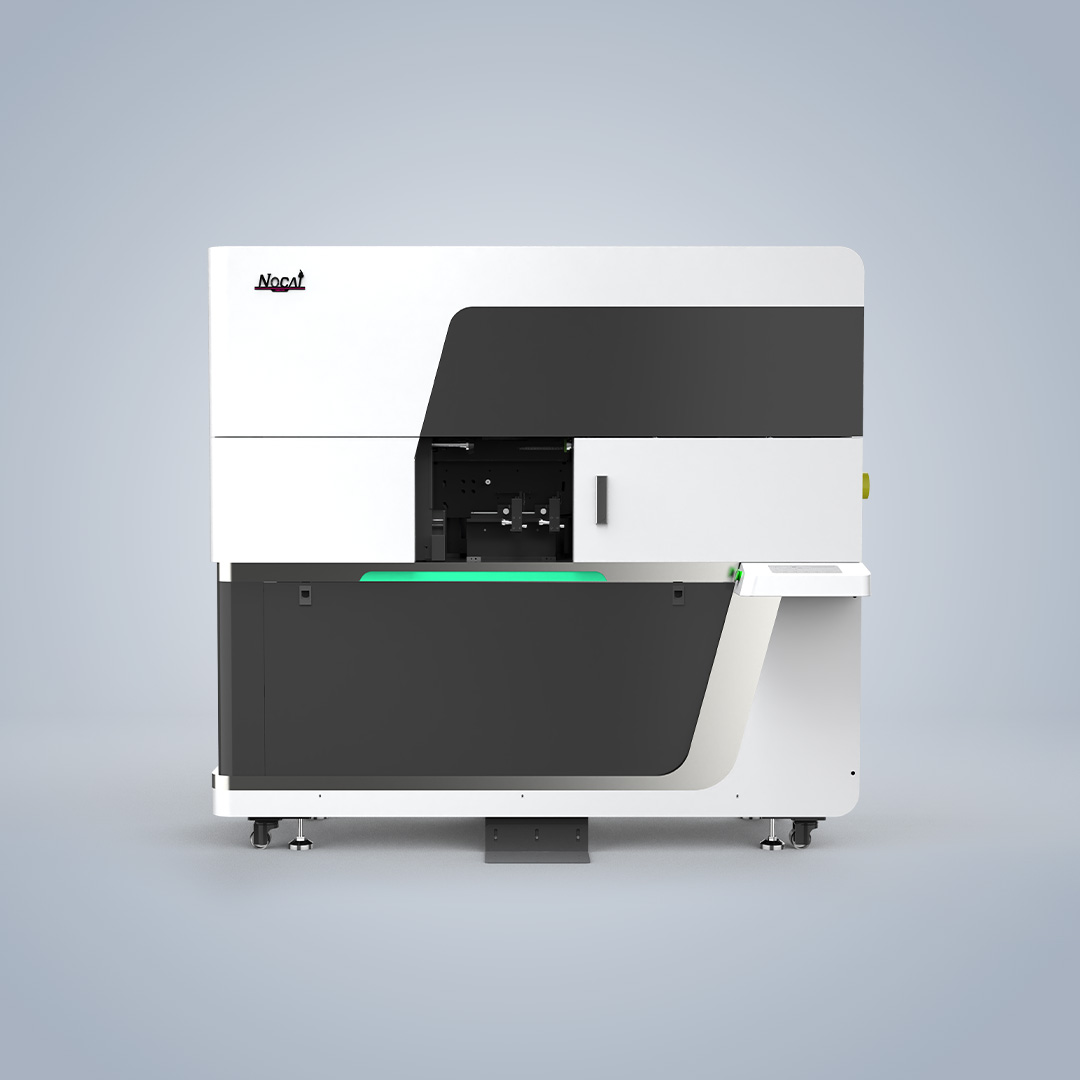

Helical 360-degree printing process for cylindrical insulated cups

Operational stability is supported by a negative-pressure ink supply system, intelligent temperature control for secondary ink cartridges and the baseplate, and heating functions. Printhead protection includes a lifting ink station for capping and an infrared anti-collision sensor that stops carriage movement upon contact.

The company lists ISO certification for the design and production of digital printers and TUV certification for the NC-UV0609PROII. Its cooperation cases include agent and sole-agent customers using inkjet and UV printers for printing on different materials in markets including India, Indonesia, Poland, Turkey, Malaysia, and Korea.

Data/Solution Comparison

Adaptation Requirement	NC-CylinderElf-IV-A Support
Multiple product diameters	Supported through multi-diameter cylindrical jigs with scale markings
Irregular product profiles	Supported through laser-based automatic product profiling and a 2–13 mm height variance
Inclined surfaces	Supported through adjustable tilt control and reduced drop distance
Full cylindrical decoration	Supported through helical printing across a full 360-degree rotation
Production preparation and inspection	MOQ of 1 unit, delivery time of 5–7 days, aging test, and 100% inspection

Frequently Asked Questions (FAQ)

Can the printer handle different insulated cup diameters?

Yes. Multi-diameter cylindrical jigs are provided for diverse printing requirements, and the adjustable jig includes scale markings for setup.

How does the printer position irregularly shaped products?

Laser-based automatic product profiling provides precise positioning. The system supports a height variance of 2–13 mm.

Can it print on inclined cylindrical surfaces?

Yes. Adjustable tilt control changes the printing angle according to the product shape, minimizing the drop distance and supporting inclined surfaces.

Final Conclusion & Recommendations

A cylinder printing solution can accommodate multiple diameters without unnecessary preparation delays when it combines multi-diameter jigs, scale markings, automatic laser profiling, and adjustable tilt control. The NC-CylinderElf-IV-A also supports full 360-degree helical printing, an 8-color plus white and varnish configuration, and production speeds as fast as 30 seconds per unit. Nocai supports a full industrial chain, distribution, and direct-sales model, with online support, video calls, remote control, manuals, installation videos, and spare-part change videos. For detailed technical solutions or support, please reach out to us via nc05@gznuocai.com.
